Basics of Machine Safeguarding
Introduction
Crushed hands and arms, severed fingers, blindness — the list of possible machinery-related injuries is as long as it is horrifying.
There seem to be as many hazards created by moving machine parts as there are types of machines.
Safeguards are essential for protecting workers from needless and preventable injuries.
The purpose of machine guarding is to protect the machine operator and other employees in the work area from hazards created by ingoing nip points, rotating parts, flying chips and sparks.
A good rule to remember is: Any machine part, function, or process which may cause injury must be safeguarded. When the operation of a machine or accidental contact with it can injure the operator or others in the vicinity, the hazards must be either controlled or eliminated.
Where Mechanical Hazards Occur
Dangerous moving parts in three basic areas require safeguarding:

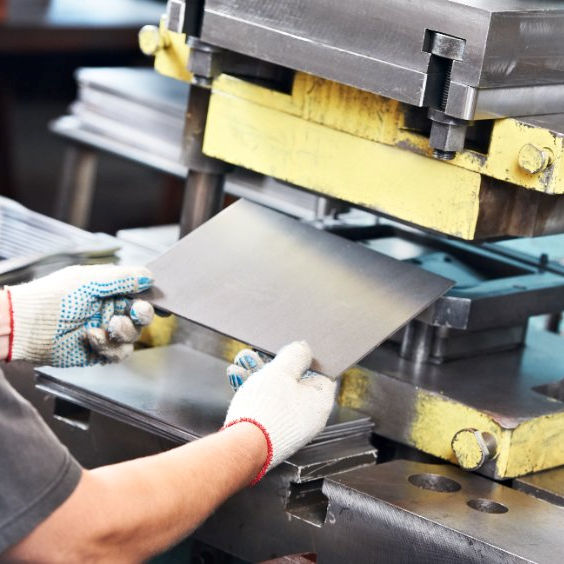

- The point of operation: that point where work is performed on the material, such as cutting, shaping, boring, or forming of stock.
- Power transmission apparatus: all components of the mechanical system which transmit energy to the part of the machine performing the work. These components include flywheels, pulleys, belts, connecting rods, couplings, cams, spindles, chains, cranks, and gears.
- Other moving parts: all parts of the machine which move while the machine is working. These can include reciprocating, rotating, and transverse moving parts, as well as feed mechanisms and auxiliary parts of the machine.
Description of Accident
A 23-year-old woman in the United Kingdom underwent four surgeries and trauma counseling after a devastating workplace accident that led to the amputation of her right hand.
She had been working on a blown line machine at a foam products facility when the equipment became blocked. A colleague isolated the machine from the main power supply, and the woman proceeded to unscrew a Perspex access window to reach inside.
The window had been installed to give operators and engineers access to the machine’s interior but had not been fitted with an interlocking guard. As a result, moving parts remained accessible even when the machine appeared to be powered down. Risk assessments had not been reviewed or updated since the window was added.
As the worker reached in to clear the blockage, residual energy in the mechanism caused it to move, pulling in her right hand.
The incident resulted in the loss of three fingers, and further surgery led to the full amputation of her hand.
She later said the injury had completely changed her life and her sense of self.
Inspection Results
An investigation by the Health and Safety Executive (HSE) found that the company had no safe system of work for clearing blockages — despite knowing that such incidents were common.
The company also failed to restrict access to tools that allowed employees to reach the machine’s dangerous moving parts.
In court, the company pleaded guilty to breaching Section 2(1) of the Health and Safety at Work etc. Act 1974. They were fined £180,000 and ordered to pay £4,337 in costs.
Knowledge Check Choose the best answer for the question.
1-1. Any machine part, function, or process which may cause injury must be _____.
