Drilling Ahead Process
The drilling ahead process consists of a series of coordinated steps that guide the drill bit deeper into the earth.
Oil Well Life Cycle
This operation involves mechanical rotation, fluid circulation, and precise control to safely and efficiently construct the wellbore. Below is a detailed explanation of each major step in the process:
1. Preparing the Drill Bit and Bottomhole Assembly (BHA)
- Drill bit selection: Choose a bit designed for the rock type and depth. Common types include roller cone and PDC bits.
- Assembling the BHA: Connect the drill bit to stabilizers, drill collars, and other tools that help guide the bit and provide weight for cutting.
- Hazards: Dropped objects, pinched fingers during assembly, and heavy lifting injuries.
- Safe Practices: Use lifting aids, inspect tools before use, and wear gloves and steel-toed boots. Keep a clear path around the assembly area.
2. Connecting the BHA to the Drill String
- Drill string setup: The BHA is attached to the drill pipe, forming a continuous string that can be rotated and moved vertically.
- Lifting into the derrick: The assembly is hoisted into position using the drawworks and traveling block.
- Hazards: Struck-by and caught-between injuries from suspended loads and swinging equipment.
- Safe Practices: Ensure proper signaling and communication between crew members. Stay clear of the path of moving pipe. Use taglines to control loads.
3. Rotating the Drill Bit
- Top drive or rotary table: The drill string is rotated either by a top drive system mounted on the derrick or by a rotary table at the rig floor.
- Applying weight: Drill collars provide downward force to enable the bit to grind or cut through rock.
- Hazards: Entanglement with rotating equipment, mechanical failures, and high torque forces.
- Safe Practices: Never touch or step near rotating parts. Verify guards are in place and operational. Use lockout/tagout procedures when performing maintenance.
4. Circulating Drilling Fluid
- Mud pumps: Pump drilling fluid (mud) down the drill pipe and out through the bit nozzles.
- Functions of mud: Cool the bit, transport rock cuttings to the surface, prevent wellbore collapse, and control formation pressure.
- Hazards: High-pressure fluid leaks, chemical exposure, and slips from spilled mud.
- Safe Practices: Inspect mud pumps and lines regularly. Use appropriate PPE, such as chemical-resistant gloves and eye protection. Clean spills immediately to prevent slips.
5. Adding New Pipe (Making a Connection)

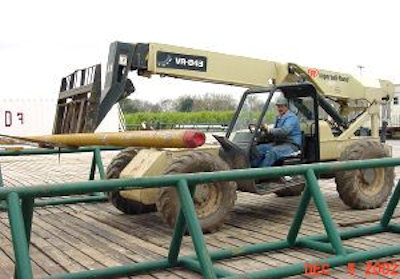

- Drill pipe stands: As the bit drills deeper, additional joints of pipe are added to the string.
- Connecting process: Slips are set to hold the string, the top drive is detached, and a new pipe is aligned, made up, and torqued into place.
- Hazards: Pinch points, struck-by pipe sections, and back strain from lifting.
- Safe Practices: Use an iron roughneck or power tongs when available. Avoid placing hands near joints. Use team lifting or mechanical aids when handling pipe.
6. Monitoring Drilling Parameters
- Real-time data: Track torque, weight on bit, RPM, pump pressure, and mud flow rate.
- Adjustments: Change drilling speed, mud properties, or bit type based on formation feedback.
- Hazards: Equipment failure due to incorrect settings or data misinterpretation, leading to kicks or blowouts.
- Safe Practices: Continuously monitor systems and alarms. Use trained personnel for data interpretation. Follow blowout prevention protocols at all times.
7. Logging and Testing
- Wireline logging: Run sensors into the hole to collect geological and petrophysical data.
- MWD tools: Use measurement-while-drilling tools to track formation properties and tool orientation in real-time.
- Hazards: Electrical shock from logging tools, falling equipment, and exposure to pressurized zones.
- Safe Practices: Secure tools properly and conduct pre-use inspections. Follow safe handling procedures for logging cables and pressure testing tools. Wear fall protection when needed.
8. Reaching Total Depth (TD)
- Final depth: Continue drilling until the planned depth is reached.
- Prepare for casing: Once TD is confirmed, circulate clean mud, condition the hole, and prepare to run casing.
- Hazards: Fatigue-related errors, high pressure from formations, and equipment stress or failure.
- Safe Practices: Take breaks as scheduled to avoid fatigue. Monitor for pressure changes carefully. Follow proper conditioning and casing procedures to secure the wellbore.
Conclusion
The drilling ahead process is a highly technical and controlled sequence that ensures the successful construction of an oil or gas well. Each step builds on the last, with constant monitoring and adjustment to ensure safety, efficiency, and the protection of personnel and equipment.
Knowledge Check Choose the best answer for the question.
4-2. What is a primary function of drilling fluid during the drilling ahead process?
