814 Heavy Equipment Safety

Compaction Equipment

Compaction equipment is used to increase the density of soil, gravel, and other materials by reducing air pockets.

This process makes the ground stronger and more stable, which is important for building roads, highways, and other structures. Compacting the ground helps prevent future settling and increases the load-bearing capacity of the surface.

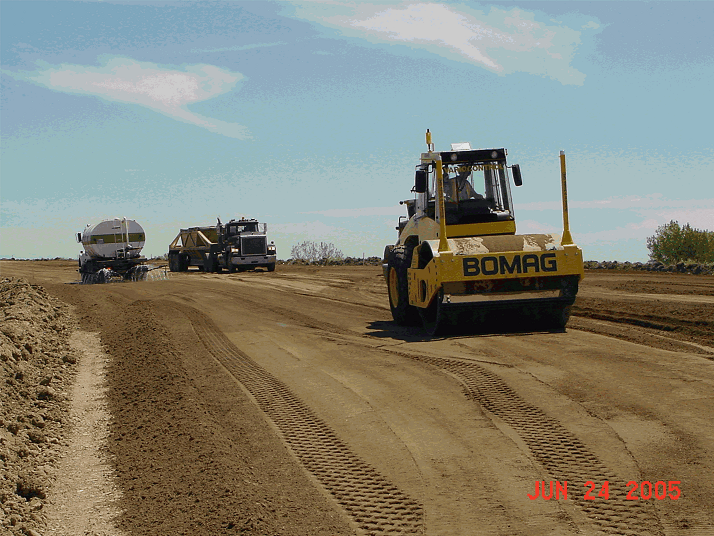

Rollers are the most common type of compaction equipment. They are used to compact road bed materials such as earth, aggregates, and bituminous mixtures. These machines work by applying pressure to the ground, which forces the particles closer together. The result is a smooth and stable surface that is ready for construction or paving.

There are several types of rollers, and the choice depends on the type of material being compacted and the specific job requirements. Some rollers are better suited for granular materials, while others are more effective on cohesive soils or asphalt layers.

Types of Rollers

• Static Steel-Wheeled Rollers: These rollers use their heavy steel drums to apply pressure to the ground. They are best for compacting granular soils like sand and gravel and are often used on finished surfaces.
• Vibratory Steel-Wheeled Rollers: These rollers combine the weight of steel drums with vibration to increase compaction efficiency. The vibrations help rearrange particles and remove air gaps, making them useful for compacting both granular and cohesive soils.
• Pneumatic (Rubber-Tired) Rollers: These rollers use multiple rubber tires that apply kneading action to the surface. They are ideal for compacting asphalt and other flexible materials. The tires can adjust to uneven surfaces and provide uniform pressure across a wider area.

Each type of roller plays an important role in highway and street construction or maintenance. Choosing the right roller ensures proper compaction, which helps prevent future damage and extends the life of the road surface.

Knowledge Check Choose the best answer for the question.
